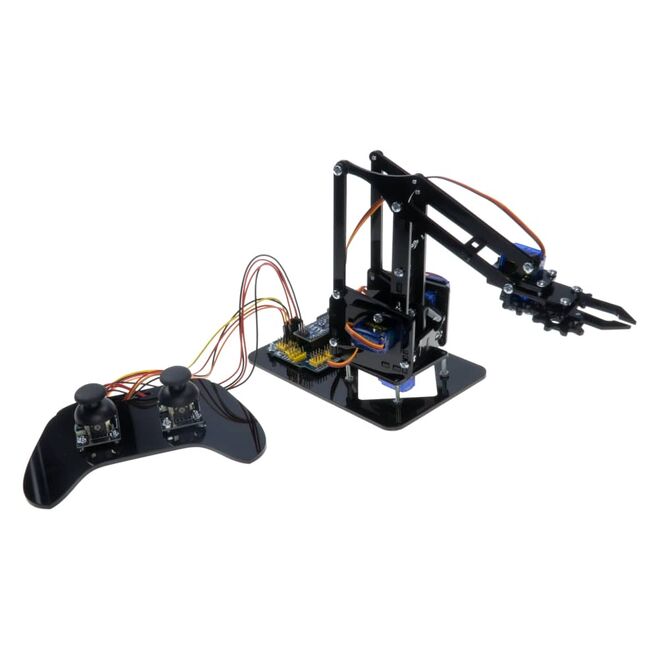

REX Discovery Series 4in1 Arduino Plexi Robot Arm with Electronics (With Joystick Arm)

4in1 Arduino Plexi Robot Arm with Electronics (With Joystick Arm)

With the Maker movement entering our lives, Robot Arm is among the most frequently done projects around the world and in our country. Its popularity is increasing day by day because it is one of the topics most associated with the concept of Industry 4.0. You can easily build your own Robot Arm with this set. Our robot arm product, which comes in plexiglass parts, is designed to be easily assembled. The robot arm is a product that can be programmed very easily thanks to Arduino support. Arduino robot arm product has a structure that moves by controlling plexi-structured parts with 4 servo motors. After programming, you can add it to all your projects and control it with certain components. It has the ability to move in 3-Axis in X-Y-Z directions. Arduino robot arm can be used with joystick.

Arduino Robot Arm Package Content:

Arduino Nano Clone - USB Cable Gift - (USB Chip CH340) 1
Arduino Nano Sensor Shield 1
2-Axis Joystick Board 2
10K Potentiometer - WH148 4
HC06 Bluetooth-Serial Module Card 1
USB to Barrel Jack Converter 1
Breadboard 1
4 Pin Push Button - Black (6x6x5 mm) 2
IC205 180 Degree Slide Switch 1
DC Female Barrel Jack with Terminal Output - DC Female Barrel to Wire Jack 1


30 cm 40 Pin Detachable Female-Female F-F Jumper Cable - 300 mm 40
30 cm 40 Pin Detachable Male-Male M-M Jumper Cable - 300 mm 40
Tower Pro SG90 RC Mini (9gr) Servo Motor 4
M3 6 mm YSB Star Cylindrical Head Metric Screw 6
M3 8 mm YSB Star Cylindrical Head Metric Screw 15
M3 10 mm YSB Star Cylindrical Head Metric Screw 3
M3 12 mm YSB Star Cylindrical Head Metric Screw 8
M3 20 mm YSB Star Cylindrical Head Metric Screw 4
M3 Nut 10
Feeby FBY-S05 5v 2A Charging Head 1


1/4 W 330 R Resistor Pack - 10 Pieces 10


Plexi joystick console
plastic piece
